Steam pressure controls a simple pressure switch that opens on pressure rise and closes on pressure drop. They are essential components of residential steam boiler systems, responsible for maintaining safe, efficient operation by regulating the pressure at which the boiler operates. These controls ensure that the boiler produces steam at the correct pressure, preventing both under- and over-pressurization, which can impact performance and fuel consumption.
There are two main types of steam pressure controls commonly used in residential settings:
Pressuretrols: Standard pressure controls that typically operate at higher pressures. They are suitable for applications requiring moderate to high steam pressures.
Vaporstats: Specialized low-pressure controls designed for precise regulation at pressures below 1 psi. Vaporstats are preferred in residential systems because they enable more accurate control, reducing the risk of over-pressurization and improving energy efficiency.
Additive and Subtractive Differential Settings on Residential Steam Boilers
In residential steam boiler controls, differential settings play a critical role in determining how pressure controls (such as Pressuretrols and Vaporstats) respond to changes in steam pressure. The differential setting defines the range between the cut-in and cut-out pressures, helping the boiler maintain consistent operation and prevent short cycling.
Additive Differential:
- With additive differential settings, the differential value is added to the cut-in pressure to determine the cut-out pressure. For example, if the cut-in is set at 0.5 psi and the differential is 1.5 psi, the boiler will turn off (cut-out) at 2 psi (0.5 psi + 1.5 psi). This method is commonly used in standard pressure controls like Pressuretrols.
Subtractive Differential:
- In subtractive differential settings, the differential value is subtracted from the cut-out pressure to determine the cut-in pressure. For instance, if the cut-out is set at 2 psi and the differential is 1.5 psi, the boiler will turn on (cut-in) at 0.5 psi (2 psi - 1.5 psi). Correctly setting additive or subtractive differentials ensures that the boiler operates efficiently, minimizes fuel consumption, and reduces wear on system components. It is important to refer to the manufacturer's instructions for each control type to set the differential appropriately for the specific residential steam boiler system.
Addidtive Differencial

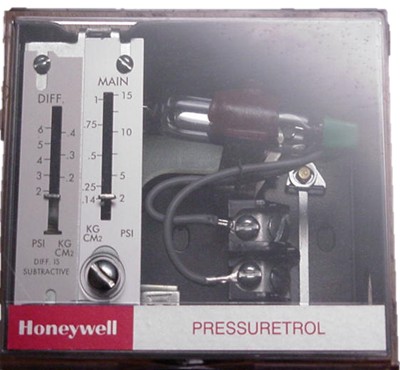

Subtractive Differential

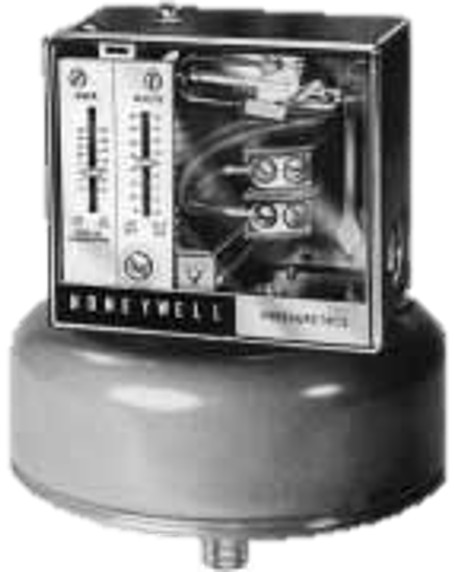

Vaporstat - Ounces of pressure
Problems that may be encountered with steam pressure controls
If you have voltage at either terminal of the control, you should have voltage leaving the control at the other terminal. If you don't verify on the gauge that the boiler is not off on steam pressure. If the boiler is cold, it will not have steam pressure.
If the boiler is cold and you don't have voltage leaving the control, do not immediately condemn the control, as it may be a blocked pigtail. This is the small pipe below the steam control, which usually has a curl in it, but not always. If it gets pretty dirty inside, it will allow steam past the dirt, but when the boiler cools off between cycles, even though the thermostat is still demanding heat. To clean this, remove the pressure control, clean the tube under running water, and, if needed, push a wire through it to open it or replace the pigtail. While the pressure control is off, recheck the pigtail terminals for continuity. Reassemble the pigtail and pressuretrol and reinstall the wires.
