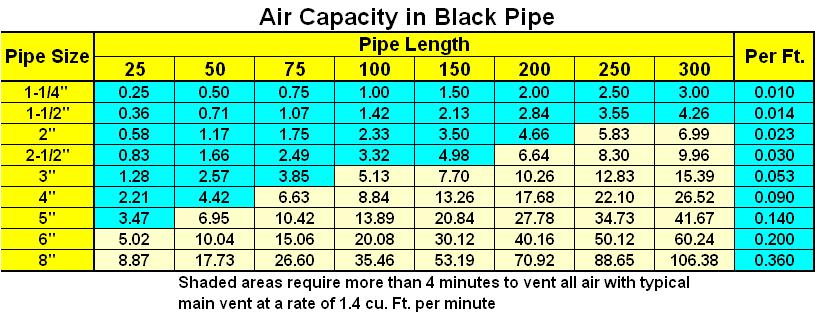

Calculating Pipe CFM of Air



Cubic Ft of Air in Radiation



Radiator

Cu. Ft. Per Sq Ft

 Cast-iron wall

.028

 Cast-iron column

.025

 Cast-iron tube

.013

Cast-iron thin tube (newer Style)

.009

 Cast-iron radiant radiator

.008

 Cast-iron baseboard (9" high)

.07

 Cast-iron cabinet convector

.0003

 Unit  heater

.0002

It may be required to use more than one main line vent per steam main in larger systems.

Multiple Main Line Vents
