Steam Boiler Radiator Sizing Charts

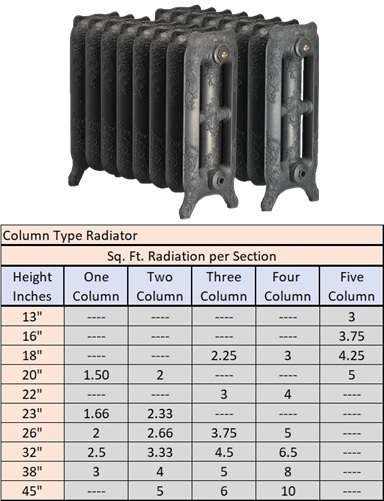

Column Type Radiators

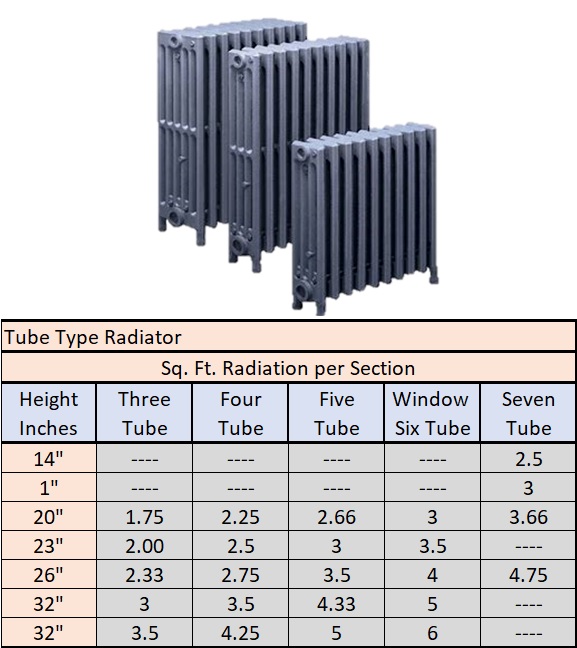

Tube Type Radiators

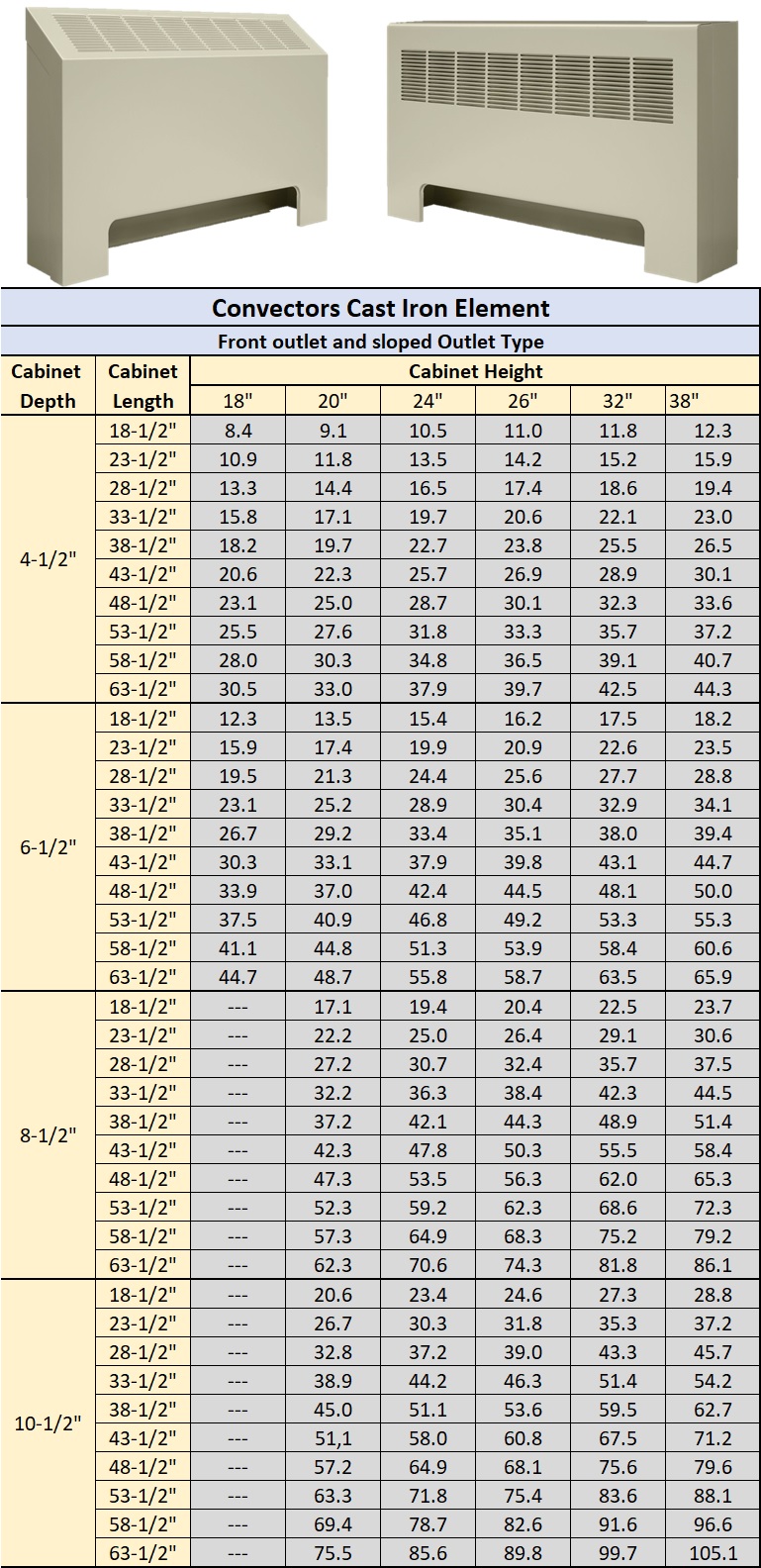

Cabinet Convector - Cast Iron Element

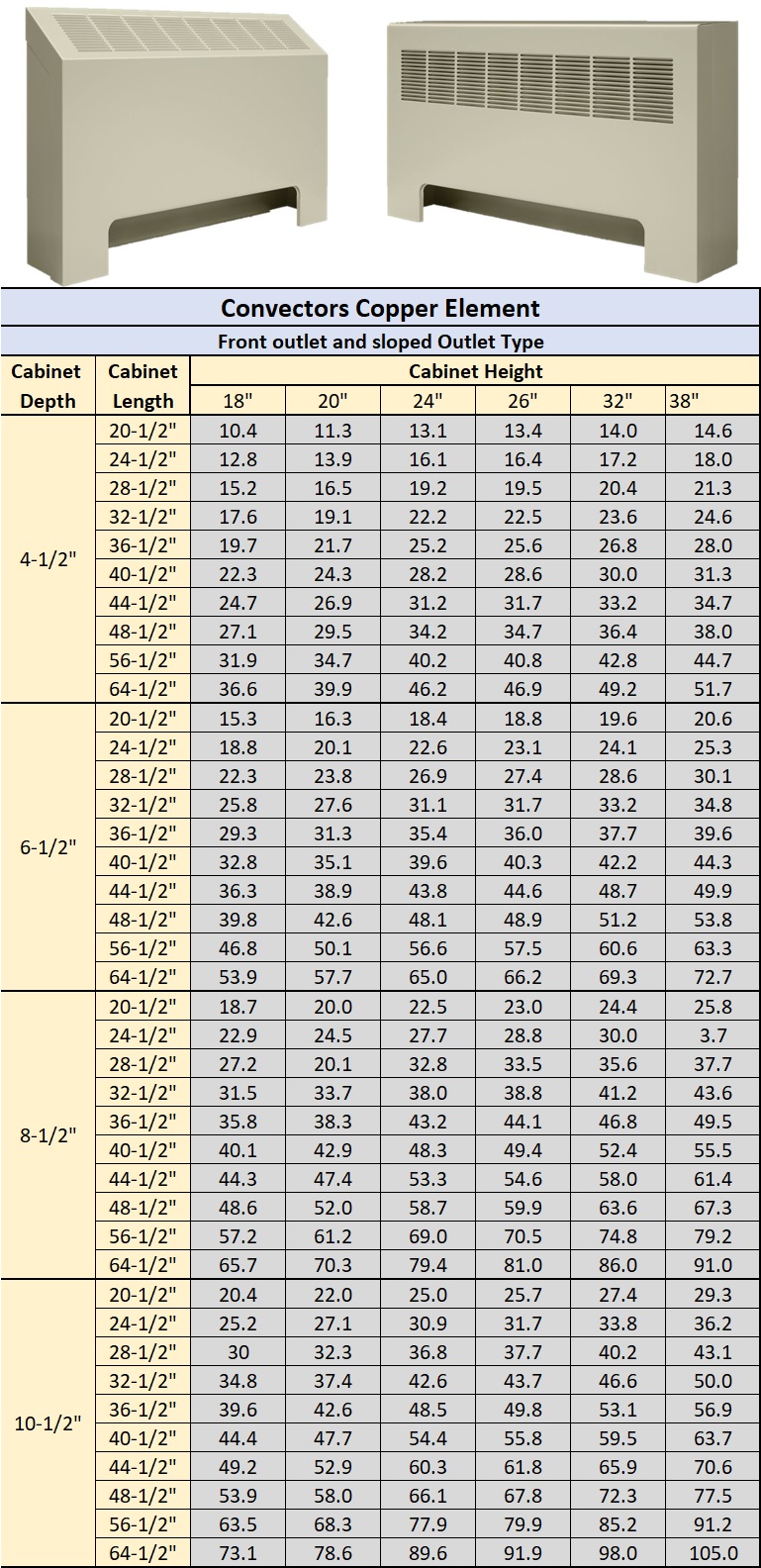

Cabinet Convector - Copper Element

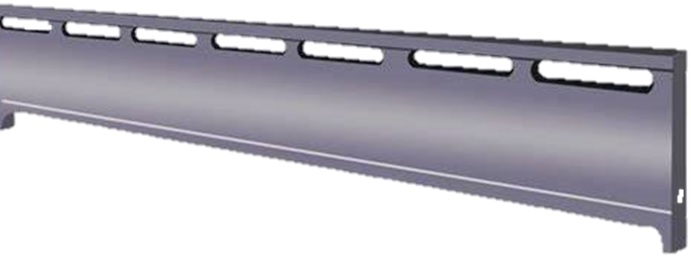

Cast Iron Baseboard

Calculate at 3.4 square feet of steam per lineal foot of baseboard.
