Properly Balancing a One Pipe  Residential Steam System

Many tech's believe that balancing a residential steam system is done by adjusting the automatic radiator air vents dependent on the radiator location. Unfortunately, this is not really the way to balance a steam system. You should be adjusting the air vent dependent on the size of the radiator. An important tip on balancing a single pipe steam system, verify there are working main line vents. Below is a Hoffman and Gorton main line vents.

Steam system efficiency is all about venting. The steam is produced in the boiler and must move to the end of the steam main first. The only way to get the steam to move through the insulated steam main  is to vent the air from the main. Yes, I said insulated steam mains. No steam system should be operated without insulated mains as it can create multiple issues.

  • Noisy systems
  • Slow heating
  • Systems that cannot be balanced
  • No heat in some areas
  • fuel bills

Venting One Pipe Steam Mains

The main line vents vent much faster than the radiator vents. It may not be unusual to see multiple main line vents connected near the end of the steam main. They come in different sizes and shapes.

Hoffman Main Vent Gorton Main Vent

It does not matter if there is one or multiple main line vent(s), they should never be at the very end of the steam main Stay back about 6” to 12” from the end of the main. Raise them as high as you can within reason.

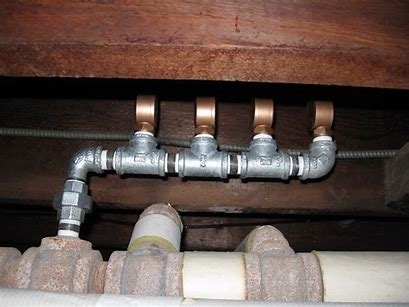

Multiple Main Line Vents

Venting Radiators

There are many different styles of cast iron radiators. There are tall and short ones, fat and thin ones all mixed in the same heating systems. There is tube type, column type, cabinet convectors with cast iron, copper, or steel pipe with aluminum fined elements in the cabinets. These cabinets also come short, tall, narrow, and deep and all this changes the output of the convector. All types of steam radiation have a sq. ft. of steam rating. Steam radiators will have the vent mounted about ½ of the way up the radiator on the end section away from the steam supply pipe. If the vent is mounted near the top of the radiator it will not work properly, this radiator is actually a hot water radiator, not a steam radiator.

Radiator Single Vent

Ahhh, now we’re getting somewhere. All this radiation can be connected to the same single pipe steam system. It is imperative that all the radiation is vented with a radiator vents. I have always liked the adjustable style radiator vents. All the radiator vents should be the same manufacturer and style.

In the heated rooms of the home there will be one, two or more radiators. Contrary to belief it does not matter if the radiator is on the first floor, second floor, closer or further from the boiler. Balancing the one pipe residential steam boilers has nothing to do with geographically where the radiator is in the home but the size of the radiator.

Balancing Radiators

Radiators of the same size should be vented at the same rate. It is very important to have working and fast venting main line vents to be able to properly balance a one pipe steam system. To size main line vents see Calculating CFM in steam mains.

Vari Vent Scale

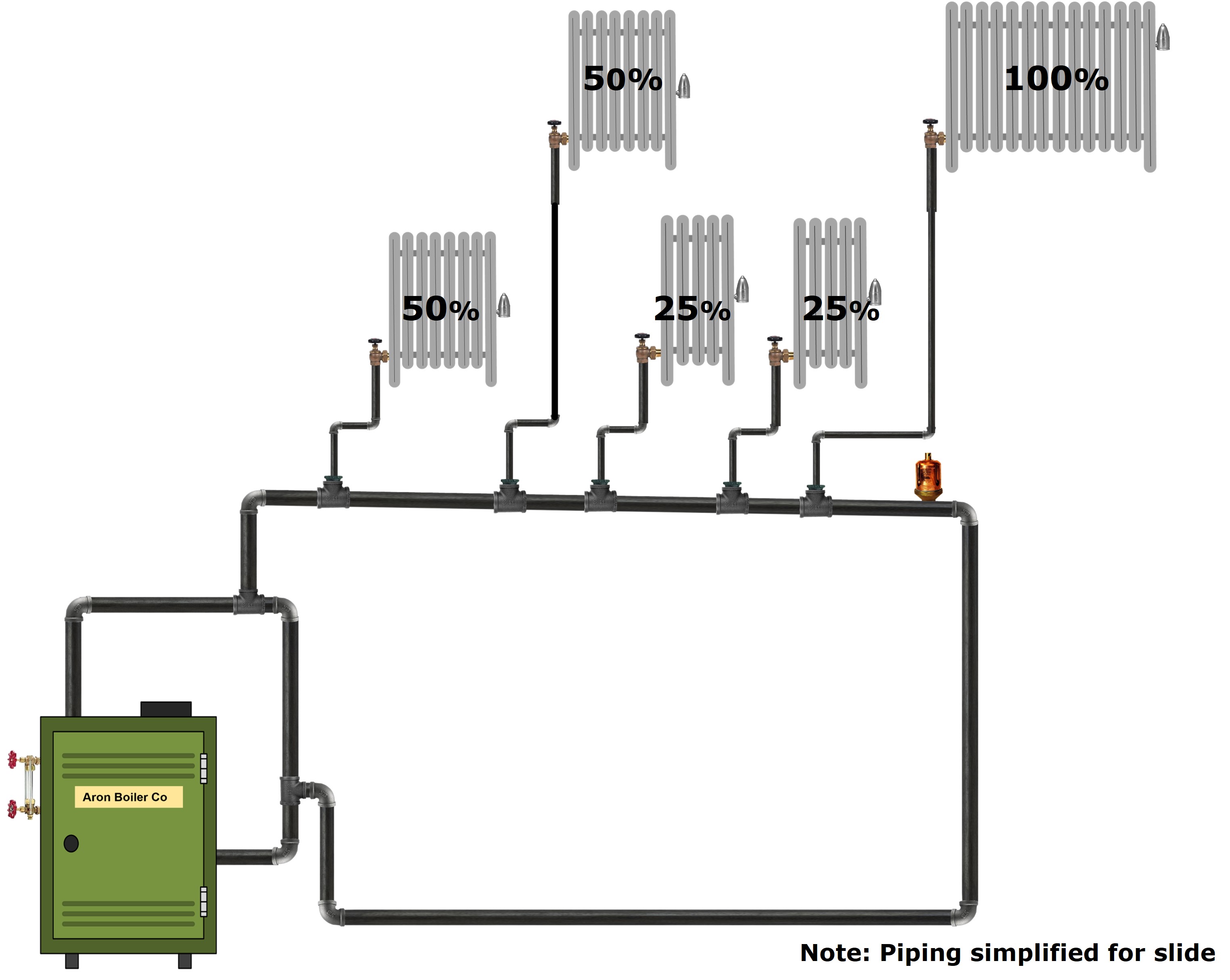

It is fairly common in a residential steam system if you look at all the radiators there there willl be multiple sizes. This makes it easy to balance. In this example, let's assume there are 2 five section radiators, 2 eight section radiators and 1 fourteen section radiator. Again, ignore where the radiator is in the home. Verify you have good working main line vents. The only thing we are concerned with is vent on the largest radiator, set the radiator vent wide open wide open on air vent scale (9). The 2-eight section radiators may be set to about 50% (5 or 6), and the 2-five section at about 25% (2 or 3) on the radiator vent. Explain to the customer that if a room is a bit too warm close one number or it too cool open 1 number and wait about a week before making another adjustment but only one number at a time.

Vari Vent Scale

One last thing, a radiator that would be 30 sq. ft. of steam or larger. One radiator vent may not be enough vent. It is good practice to add a second vent to any radiator larger than 30 sq, ft. steam. Drill and tap the second air vent below the existing air vent. The second reason to add a second air vent is due to an exceptionally long pipe from the steam system main to the radiator.

Double Venting Radiators

Double Vented Radiator
